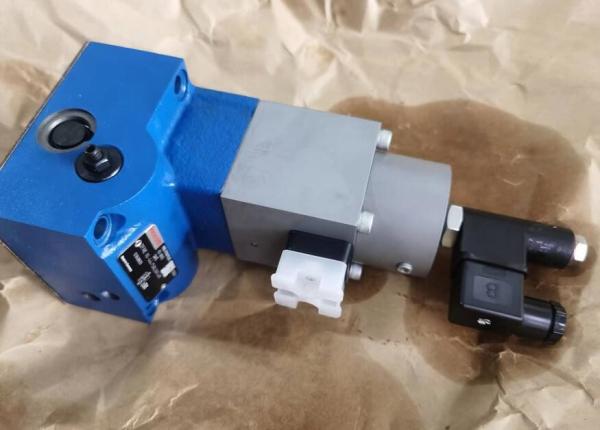

Proportional Flow Control Valve R900915815 2FRE10-44/50LBK4M 2FRE10-4X/50LBK4M

  • 1
  • 2
  • 3

Brand Name : Rexroth

Model Number : R900915815 2FRE10-44/50LBK4M 2FRE10-4X/50LBK4M

CertifiSAARion : ISO9001

Place of Origin : Germany

MOQ : 1

Price : On request

Payment Terms : T/T, Western Union

Supply Ability : 100PCS per month

Delivery Time : 7-10days

Packaging Details : Standard paper box

MNR : R900915815

Description : 2FRE10-44/50LBK4M 2FRE10-4X/50LBK4M

Contact Now

Rexroth 2FRE Series Proportional flow control valve in 2-way version
Size 10, 16
Component series 4X
Max. operating pressure 315 bar
Flow, max. 160 l/min
Features
Valve with pressure compensator for pressure-compensated controlling of a flow
Proportional solenoid operation
For subplate mounting: Porting pattern according to ISO 6263
With electrical position control for the metering orifice
Axially movable position transducer coil, therefore an easy zero point calibration of the metering orifice is possible without having to interfere with the control electronics (electrical-hydraulic)
Low manufacturing tolerance of the valve and electric amplifier and amplifier module
Flow control in both directions through rectifier sandwich plate
Type Code:
01
02
03
04
05
06
07
08
2FRE
-
4X
/
B
K4
*
01
Proportional flow control valve in 2-way version
2FRE
02
Size 10
10
Size 16
16
03
Component series 40 … 49 (40 … 49: unchanged installation and mounting dimensions)
4X
Rated flow A → B, flow characteristics
04
Size 10
Linear
Up to 10 l/min
10L
Up to 16 l/min
16L
Up to 25 l/min
25L
Up to 50 l/min
50L
Up to 60 l/min
60L
Progressive with rapid traverse
(fine control range)
With rapid traverse up to 40 l/min
5QE
Up to 5 l/min
5Q
Up to 10 l/min
10Q
Up to 16 l/min
16Q
Up to 25 l/min
25Q
Size 16
Linear
Up to 80 l/min
80L
up to 100 l/min
100L
Up to 125 l/min
125L
Up to 160 l/min
160L
05
Withpressure compensator stroke limitation
B
Electrical connection
06
Without mating connector, connector DIN EN 175301-803-A (proportional solenoid) and GSA20 (position transducer)
K4
07
NBR seals, suitable for mineral oil HL and HLP according to DIN 51524
M
FKM seals
V
08
Further details in the plain text
*
SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.
Rexroth 2FRE10 Series Proportional flow control valve model list:
R900915817
2FRE10-4X/10LBK4M
R900785983
2FRE10-4X/10LBK4V
R900412644
2FRE10-4X/10LBZ4M
R900344246
2FRE10-4X/10LBZ4V
R900953546
2FRE10-4X/10LK4M
R900418015
2FRE10-4X/10LZ4M
R900487922
2FRE10-4X/10LZ4V
R900949575
2FRE10-4X/10QBK4M
R900496448
2FRE10-4X/10QBZ4M
R900963211
2FRE10-4X/10QK4M
R900496447
2FRE10-4X/10QZ4M
R900914429
2FRE10-4X/10QZ4M-220
R900536905
2FRE10-4X/10QZ4V
R900915825
2FRE10-4X/16LBK4M
R900963710
2FRE10-4X/16LBK4M=LB
R900760386
2FRE10-4X/16LBK4V
R900335244
2FRE10-4X/16LBV
R900417874
2FRE10-4X/16LBZ4M
R900558736
2FRE10-4X/16LBZ4M=LB
R900959337
2FRE10-4X/16LK4M
R900976050
2FRE10-4X/16LK4V
R900493805
2FRE10-4X/16LZ4M
R900340421
2FRE10-4X/16LZ4V
R900245908
2FRE10-4X/16QBK4M
R900496446
2FRE10-4X/16QBZ4M
R900768728
2FRE10-4X/16QK4M
R900496445
2FRE10-4X/16QZ4M
R900549112
2FRE10-4X/16QZ4M-220
R900915820
2FRE10-4X/25LBK4M
R900249888
2FRE10-4X/25LBK4V
R900591497
2FRE10-4X/25LBMK
R900488159
2FRE10-4X/25LBV
R900416551
2FRE10-4X/25LBZ4M
R900932728
2FRE10-4X/25LK4M
R900411869
2FRE10-4X/25LZ4M
R900520242
2FRE10-4X/25LZ4M-250
R900485279
2FRE10-4X/25LZ4V
R900962961
2FRE10-4X/25QBK4M
R900491479
2FRE10-4X/25QBZ4M
R900375533
2FRE10-4X/25QBZ4V
R900948692
2FRE10-4X/25QK4M
R900415342
2FRE10-4X/25QZ4M
R900584810
2FRE10-4X/25QZ4V
R900764820
2FRE10-4X/2QEBK4M
R900491645
2FRE10-4X/2QEBZ4M
R900963481
2FRE10-4X/2QEK4M
R900418854
2FRE10-4X/2QEZ4M
R900492604
2FRE10-4X/36L
R900535475
2FRE10-4X/36LBZ4M
R900454595
2FRE10-4X/50L-150
R900915815
2FRE10-4X/50LBK4M
R901021448
2FRE10-4X/50LBK4V
R900419483
2FRE10-4X/50LBZ4M
R900562129
2FRE10-4X/50LBZ4M-229
R900489933
2FRE10-4X/50LBZ4V
R900915813
2FRE10-4X/50LK4M
R900244809
2FRE10-4X/50LK4V
R900415446
2FRE10-4X/50LZ4M
R900520241
2FRE10-4X/50LZ4M-220
R900338655
2FRE10-4X/50LZ4V
R900488809
2FRE10-4X/50QB
R900931237
2FRE10-4X/5LBK4M
R900486100
2FRE10-4X/5LBV
R900496441
2FRE10-4X/5LBZ4M
R900942938
2FRE10-4X/5LK4M
R900962409
2FRE10-4X/5LK4V
R900415493
2FRE10-4X/5LZ4M
R900903885
2FRE10-4X/5LZ4V
R900946937
2FRE10-4X/5QBK4M
R900496442
2FRE10-4X/5QBZ4M
R900518324
2FRE10-4X/5QBZ4V
R900964806
2FRE10-4X/5QEBK4M
R900496443
2FRE10-4X/5QEBZ4M
R900962277
2FRE10-4X/5QEK4M
R900496440
2FRE10-4X/5QEZ4M
R900927423
2FRE10-4X/5QEZ4V
R900496439
2FRE10-4X/5QZ4M
R900485280
2FRE10-4X/5QZ4V
R900915823
2FRE10-4X/60LBK4M
R900976616
2FRE10-4X/60LBK4V
R900496444
2FRE10-4X/60LBZ4M
R900333574
2FRE10-4X/60LBZ4V
R900915821
2FRE10-4X/60LK4M
R900973066
2FRE10-4X/60LK4V
R900418109
2FRE10-4X/60LZ4M
R900487902
2FRE10-4X/60LZ4V
R900349166
2FRE10-4X/8LE
R901434134
2FRE10-4X=25LBK4M
R978016676
2FRE10-4X/25LK4/V
