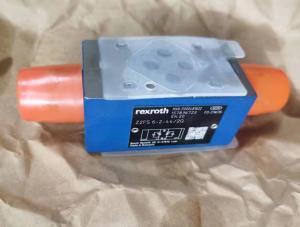

R900481622 Z2FS6-2-44/2Q Z2FS6-2-4X/2Q Twin Throttle Check Valve Z2FS6 Series

  • 1
  • 2

Brand Name : Rexroth

Model Number : R900481622 Z2FS6-2-44/2Q Z2FS6-2-4X/2Q

CertifiSAARion : ISO9001

Place of Origin : Germany

MOQ : 1

Price : On request

Payment Terms : T/T, Western Union

Supply Ability : 100PCS per month

Delivery Time : 7-10days

Packaging Details : Standard paper box

Model : R900481622

MNR : Z2FS6-2-44/2Q Z2FS6-2-4X/2Q

Contact Now

Twin throttle check valve Z2FS6

Size 6
Component series 4X
Maximum operating pressure 315 bar
Maximum flow 80 l/min

Features
Sandwich plate valve
Porting pattern according to DIN 24340, form A
Porting pattern according to ISO 4401-03-02-0-05 (with loSAARing hole)
For the main or pilot flow limitation of 2 actuator ports.
4 adjustment types:
• Setscrew with lock nut and protective cap
• Lockable rotary knob with scale• Spindle with internal hexagon and scale• Rotary knob with scale
For supply or discharge throttling

Type Code:

01 02 03 04 05 06 07 08 09
Z2FS 6 – 4X / *
01 Twin throttle check valve, sandwich plate design Z2FS
02 Size 6 6
03 Throttle check valve side A and B – 1)
Throttle check valve side A A
Throttle check valve side B B
Adjustment type
04 Setscrew with lock nut and protective cap 2
Lockable rotary knob with scale 3 2)
Spindle with internal hexagon and scale 5
Rotary knob with scale 7
05 Component series 40 … 49 (40 … 49: unchanged installation and mounting dimensions) 4X
06 With fine adjustment 1Q
Standard version 2Q
Seal material
07 NBR seals no code
FKM seals V
Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
08 no code
With loSAARing hole /60 3)
09 Further details in the plain text *

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Twin throttle check valve Z2FS6 Model List:

R900441377 Z2FS6A2-4X/1Q
R900548876 Z2FS6A2-4X/1QSO700
R900931733 Z2FS6A2-4X/1QJ
R901435985 Z2FS6A2-4X/1QJ3/60
R901435990 Z2FS6A2-4X/1QJ3V/60
R901435987 Z2FS6A2-4X/1QJ5/60
R901435994 Z2FS6A2-4X/1QJ5V/60
R900509872 Z2FS6A2-4X/1QJV
R900581526 Z2FS6A2-4X/1QV
R900427254 Z2FS6A2-4X/2Q
R901436013 Z2FS6A2-4X/2QJ3/60
R901436015 Z2FS6A2-4X/2QJ3V/60
R901436014 Z2FS6A2-4X/2QJ5/60
R901436016 Z2FS6A2-4X/2QJ5V/60
R900595235 Z2FS6A2-4X/2QJV
R900439389 Z2FS6A2-4X/2QV
R901228007 Z2FS6A2-4X/2QV/60
R900558981 Z2FS6A2-4X/2QV=LB
R900466450 Z2FS6A3-4X/1Q
R900507951 Z2FS6A3-4X/1QV
R900502066 Z2FS6A3-4X/2QV
R900532275 Z2FS6A5-4X/1QV
R901443836 Z2FS6A5-4X/2Q
R900591603 Z2FS6A5-4X/2QV
R900710037 Z2FS6A7-4X/1Q
R900584700 Z2FS6A7-4X/1QV
R900967913 Z2FS6A7-4X/2Q
R900451197 Z2FS6A7-4X/2QV
R900464382 Z2FS6B2-4X/1Q
R901436017 Z2FS6B2-4X/1QJ3/60
R901436019 Z2FS6B2-4X/1QJ3V/60
R901436018 Z2FS6B2-4X/1QJ5/60
R901436020 Z2FS6B2-4X/1QJ5V/60
R900438760 Z2FS6B2-4X/1QV
R900423224 Z2FS6B2-4X/2Q
R900740175 Z2FS6B2-4X/2QJ
R901436021 Z2FS6B2-4X/2QJ3/60
R901436025 Z2FS6B2-4X/2QJ3V/60
R901436022 Z2FS6B2-4X/2QJ5/60
R901436026 Z2FS6B2-4X/2QJ5V/60
R900579751 Z2FS6B2-4X/2QJV
R900440565 Z2FS6B2-4X/2QV
R900574150 Z2FS6B3-4X/1Q
R900584417 Z2FS6B3-4X/1QV
R900582339 Z2FS6B3-4X/2QV
R900595113 Z2FS6B5-4X/1QV
R900595709 Z2FS6B5-4X/2QV
R900596996 Z2FS6B7-4X/1Q
R900560493 Z2FS6B7-4X/1QV
R900967839 Z2FS6B7-4X/2Q
R900465879 Z2FS6B7-4X/2QV
R900481621 Z2FS6-2-4X/1Q
R900416482 Z2FS6-2-4X/1QJ
R901435770 Z2FS6-2-4X/1QJ3/60
R901435773 Z2FS6-2-4X/1QJ3V/60
R901435948 Z2FS6-2-4X/1QJ5/60
R901435951 Z2FS6-2-4X/1QJ5V/60
R900405544 Z2FS6-2-4X/1QJV
R900481623 Z2FS6-2-4X/1QV
R900481622 Z2FS6-2-4X/2Q
R901454394 Z2FS6-2-4X/2Q/60
R900901959 Z2FS6-2-4X/2QJ
R901435955 Z2FS6-2-4X/2QJ3/60
R901435983 Z2FS6-2-4X/2QJ3V/60
R901435982 Z2FS6-2-4X/2QJ5/60
R901435984 Z2FS6-2-4X/2QJ5V/60
R900444252 Z2FS6-2-4X/2QJV
R900481624 Z2FS6-2-4X/2QV
R900727967 Z2FS6-2-4X/2QV/60
R901110659 Z2FS6-2-4X/2QV/62
R900441679 Z2FS6-2-4X/SO61
R900371788 Z2FS6-2-4X/VSO61
R900576460 Z2FS6-2-4X=2Q
R900426752 Z2FS6-3-4X/1Q
R900586224 Z2FS6-3-4X/1QV
R900434395 Z2FS6-3-4X/2Q
R900455714 Z2FS6-3-4X/2QV
R901418009 Z2FS6-3-4X/2QV/60
R900422430 Z2FS6-4X/V
R900511143 Z2FS6-5-4X/1Q
R900582719 Z2FS6-5-4X/1QV
R901438380 Z2FS6-5-4X/1QV/60
R900505004 Z2FS6-5-4X/2Q
R900476838 Z2FS6-5-4X/2QV
R900438820 Z2FS6-7-4X/1Q
R900581165 Z2FS6-7-4X/1QV
R900442662 Z2FS6-7-4X/2Q
R900441810 Z2FS6-7-4X/2QV
